Hitachi DLP Lamp UX21514 UX21515 UX21516 How-To Replacement Guide

NORMAL DISCLAIMER:
— Do NOT purchase generic brand lamps such as LTI, APO or third-party manufacturers such as OSRAM. These lamps were NOT engineered with and for your TV…only your Philips lamp has been engineered to work flawlessly and output the best possible color. Above that, it just doesn’t make sense to choose an aftermarket lamp for a $5-$10 difference (and in many cases they are more expensive!!). Be a smart consumer and do your research! Discount-Merchant.com promises to be the low price leader in all Projection TV Lamps they carry…if this is not true, let us know and we’ll fix it!

Click below to buy this lamp now:

Lowest Prices Anywhere!

Necessities:

1. Standard Phillips screwdriver
2. Pair of Pliers
3. A new Philips Lamp
4. 15 minutes of your time

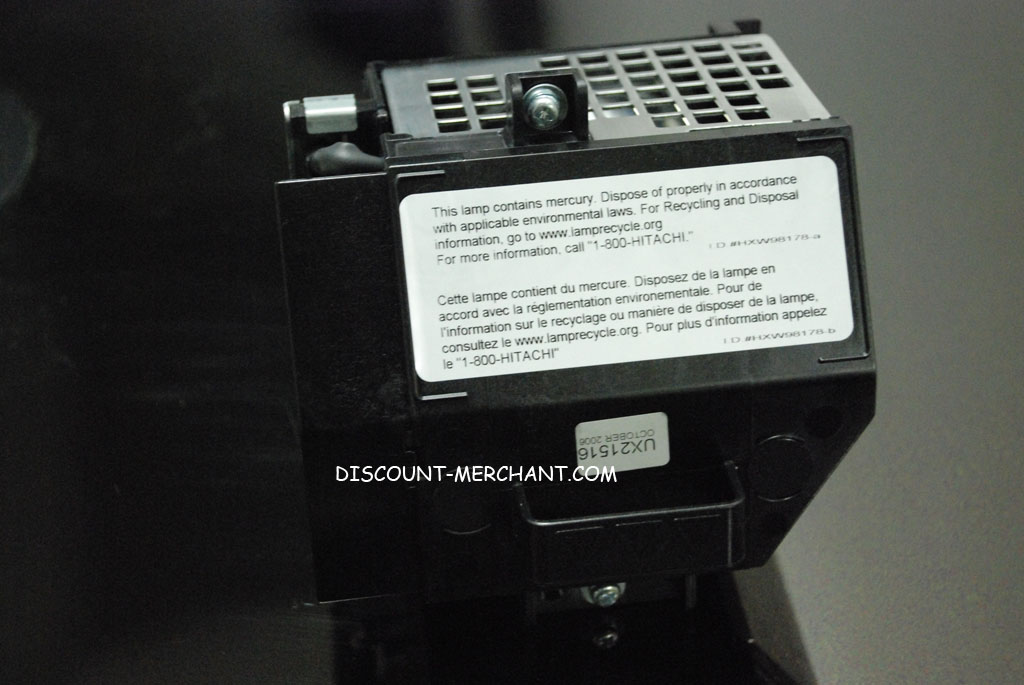

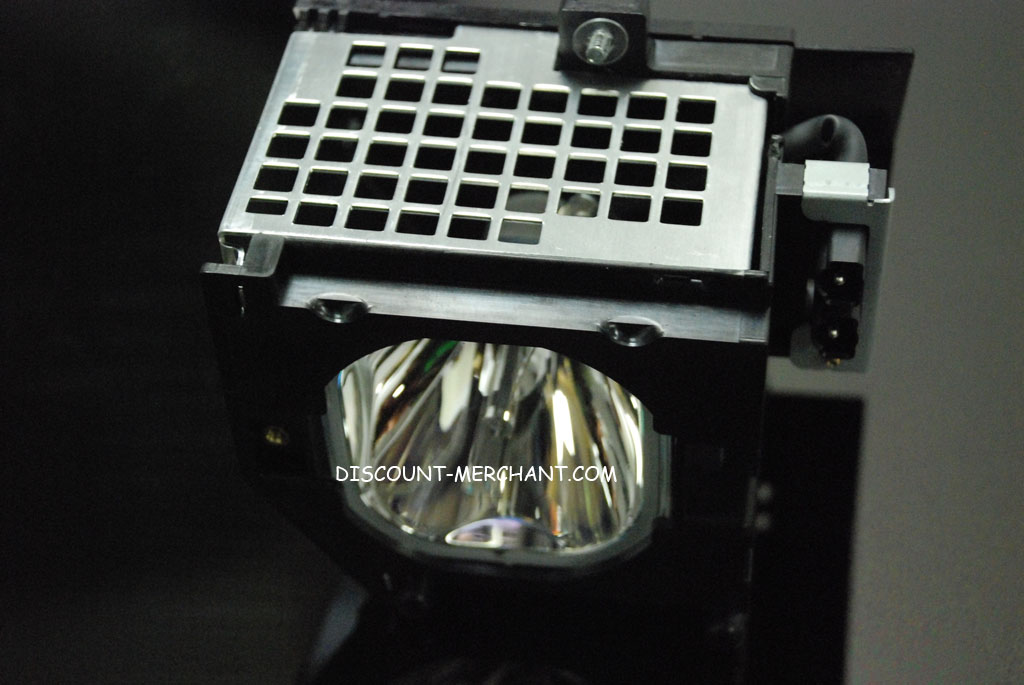

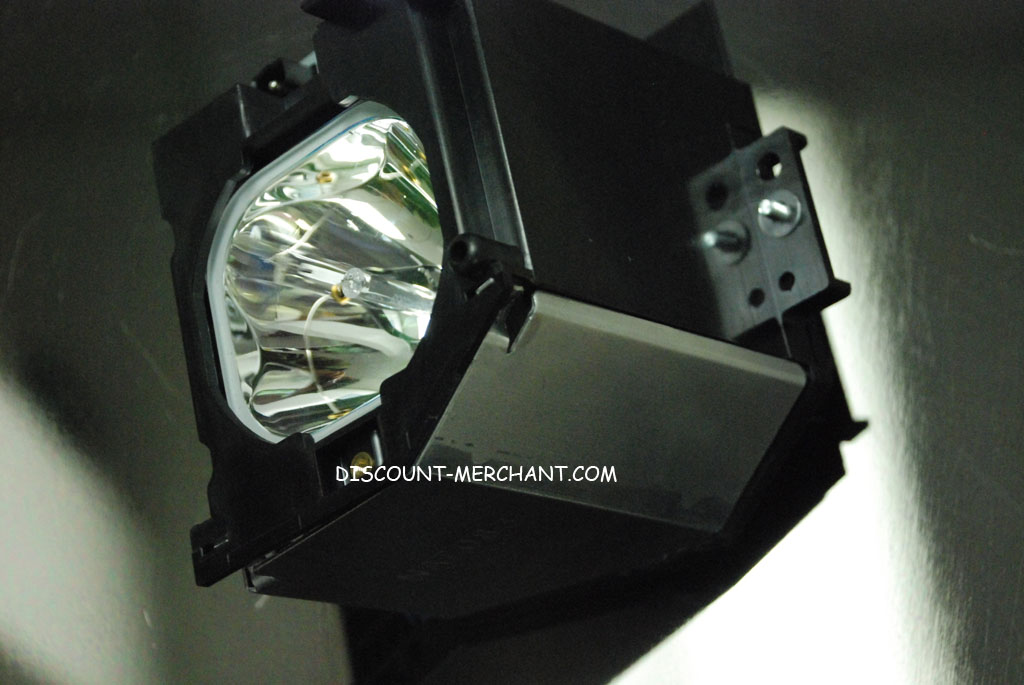

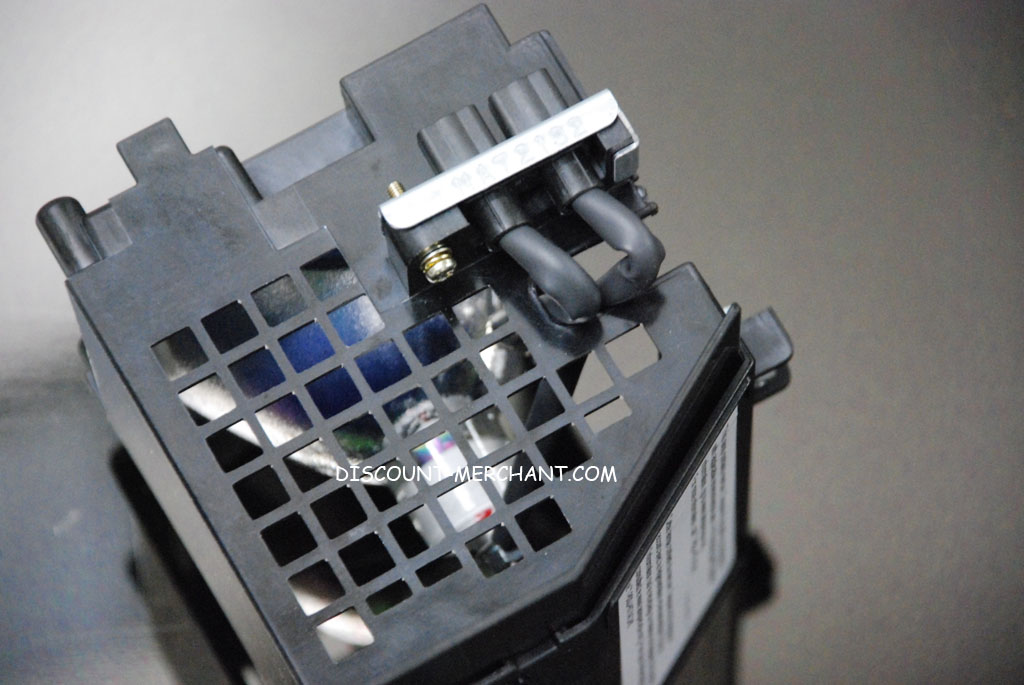

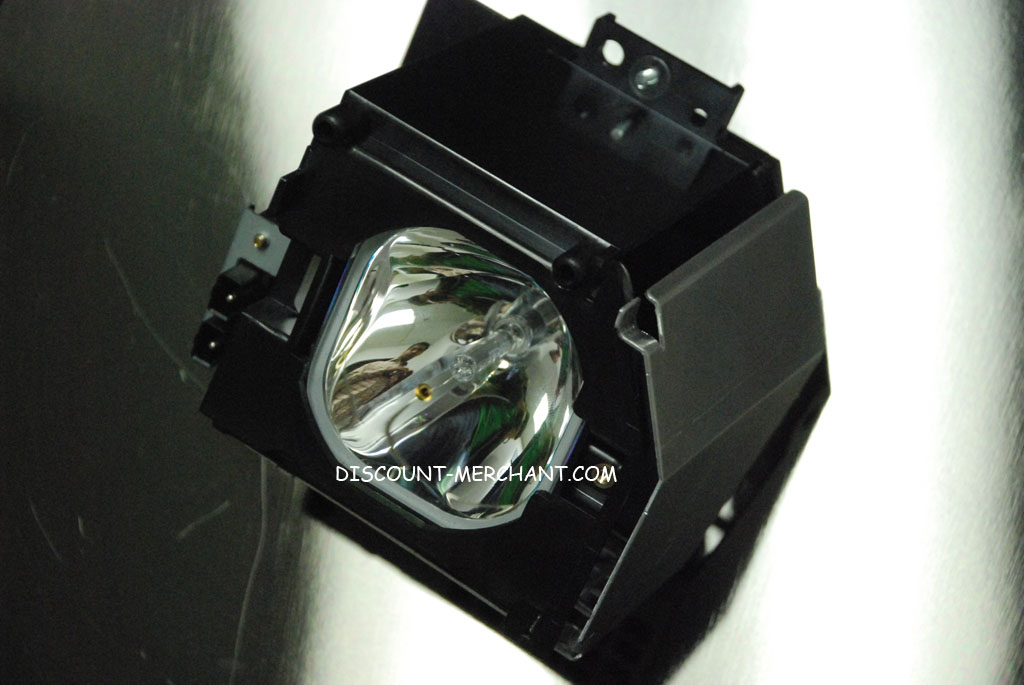

Here is the Hitachi Lamp Enclosure, remember you can click on any image to enlarge!

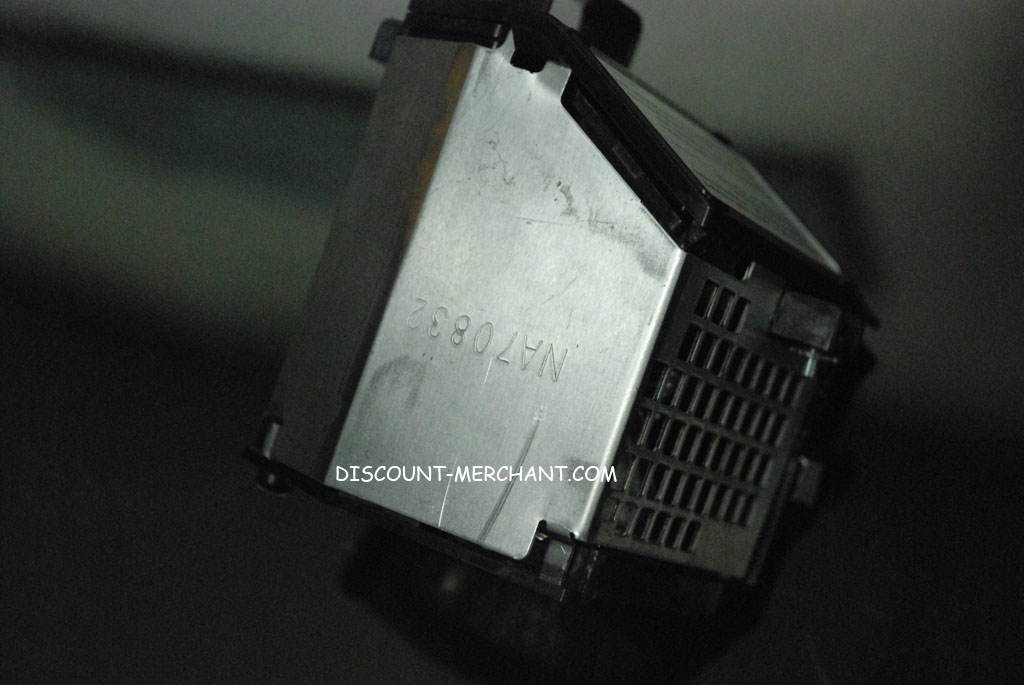

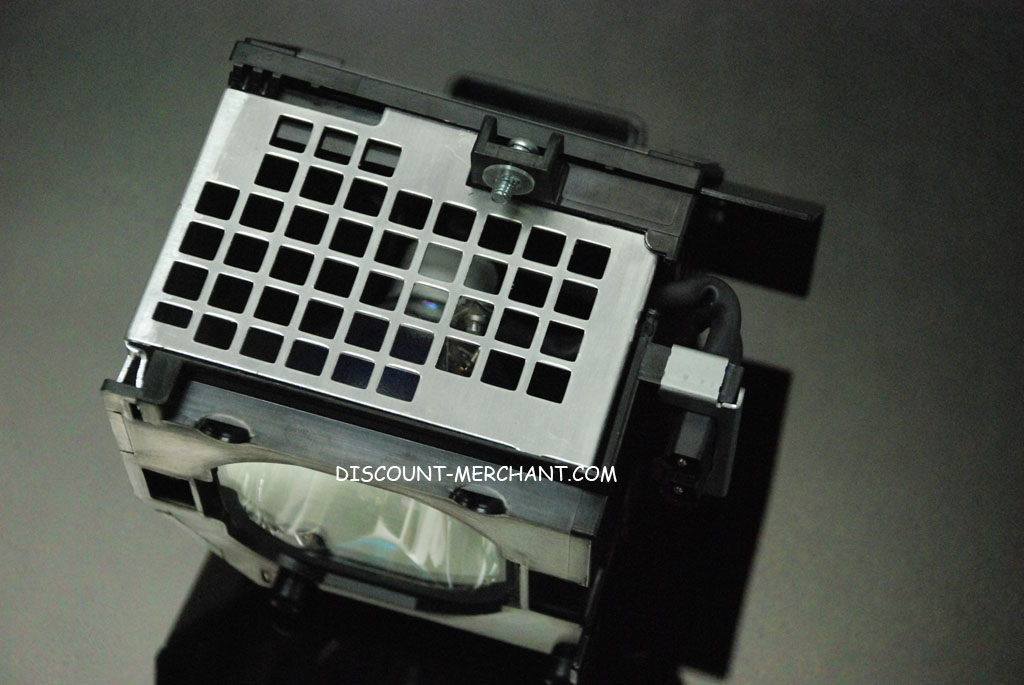

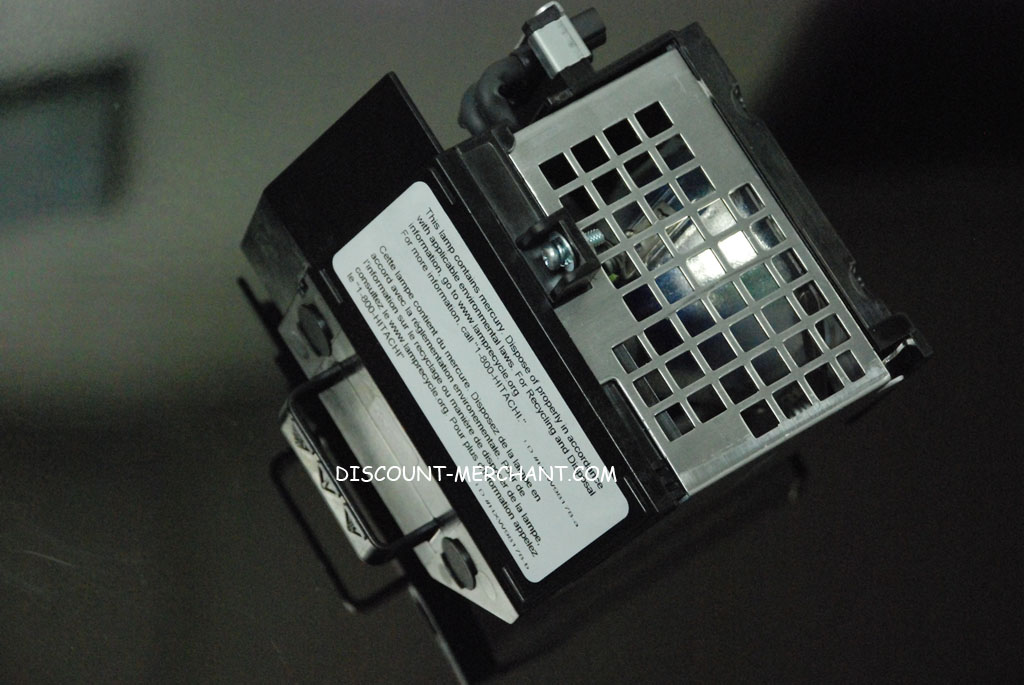

Step 1: First thing we need to remove is the metal cage…

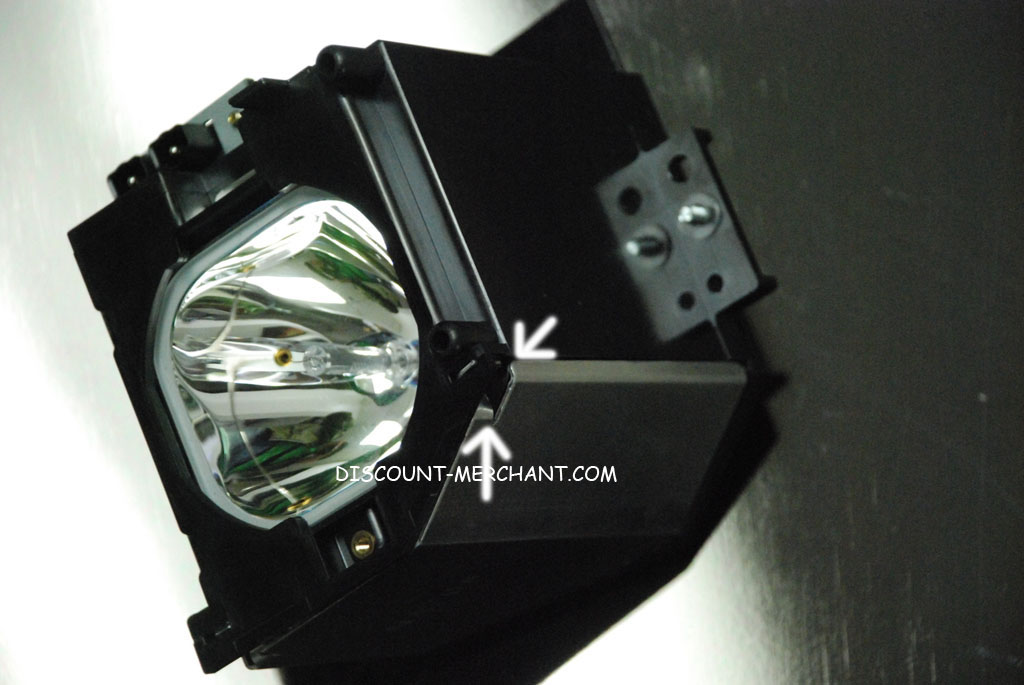

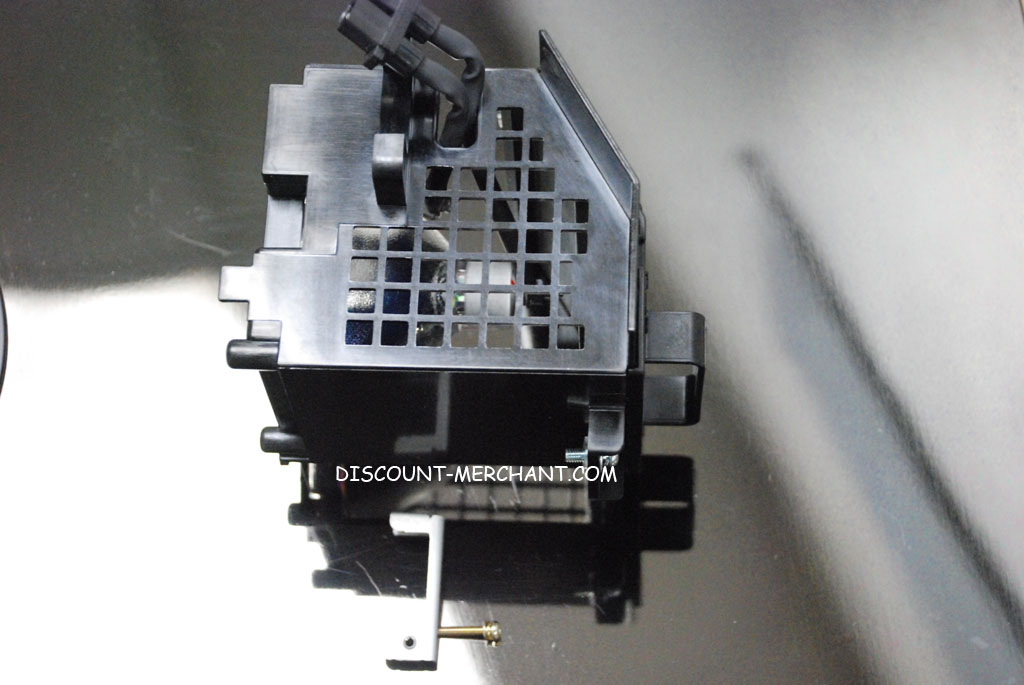

If we pull outwards and away from the plastic enclosure, the metal cage should come loose…In the pictures above and below you can see a groove where you can place your thumb inside and pull.

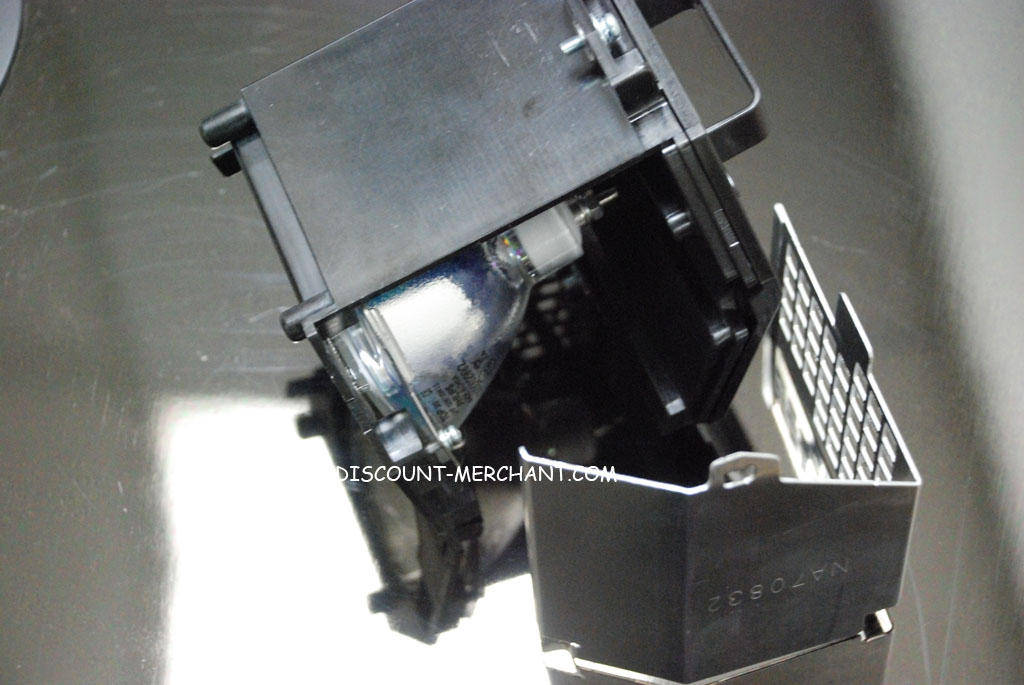

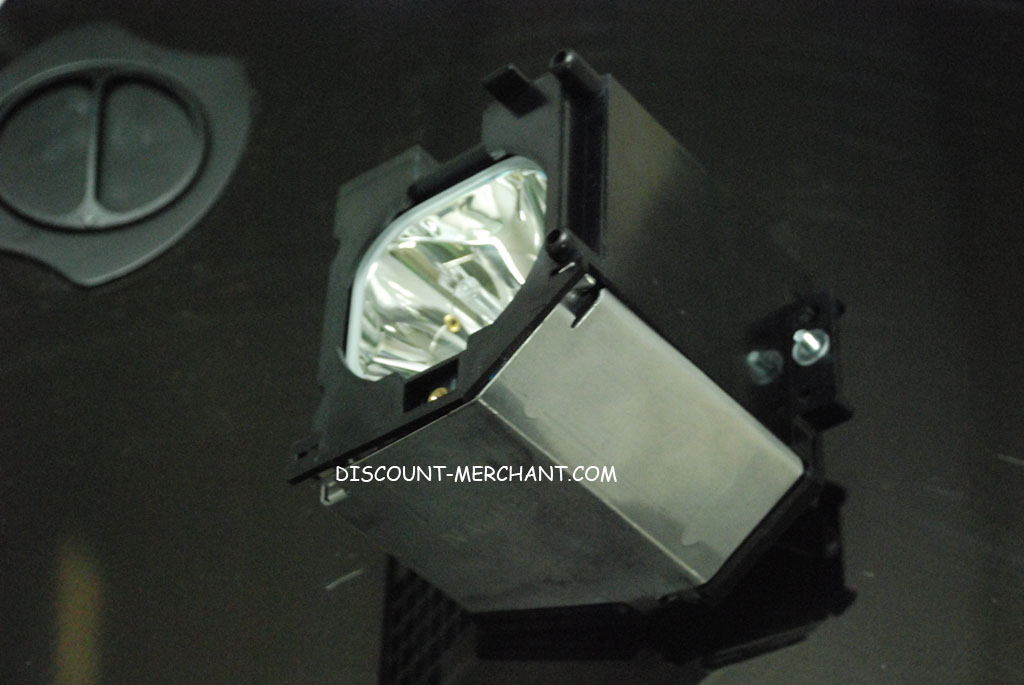

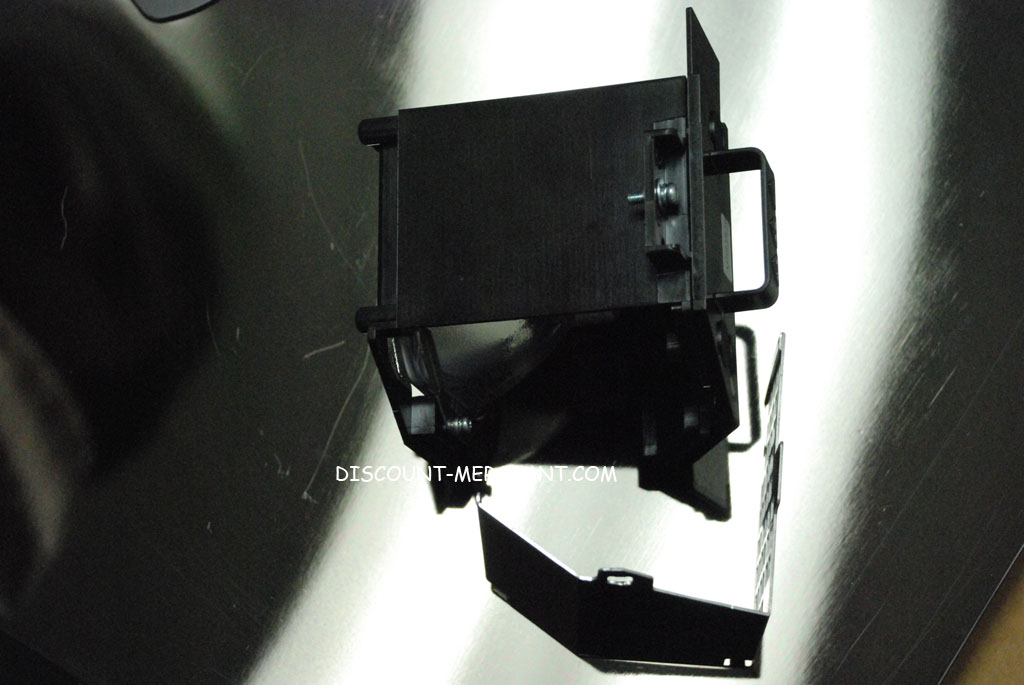

Now you can slide it off the plastic enclosure…

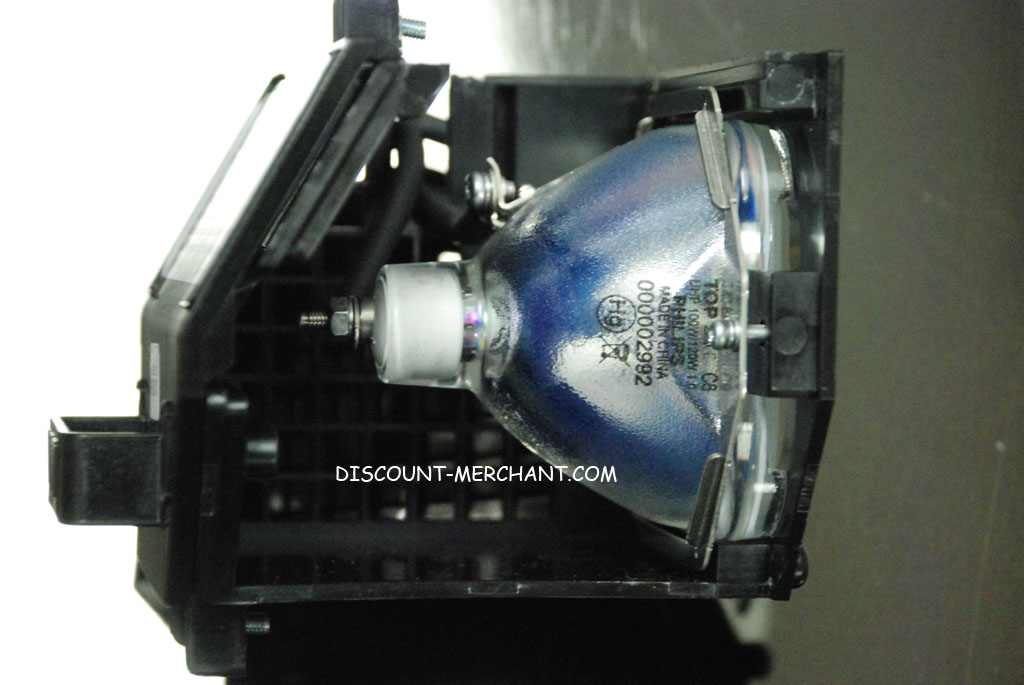

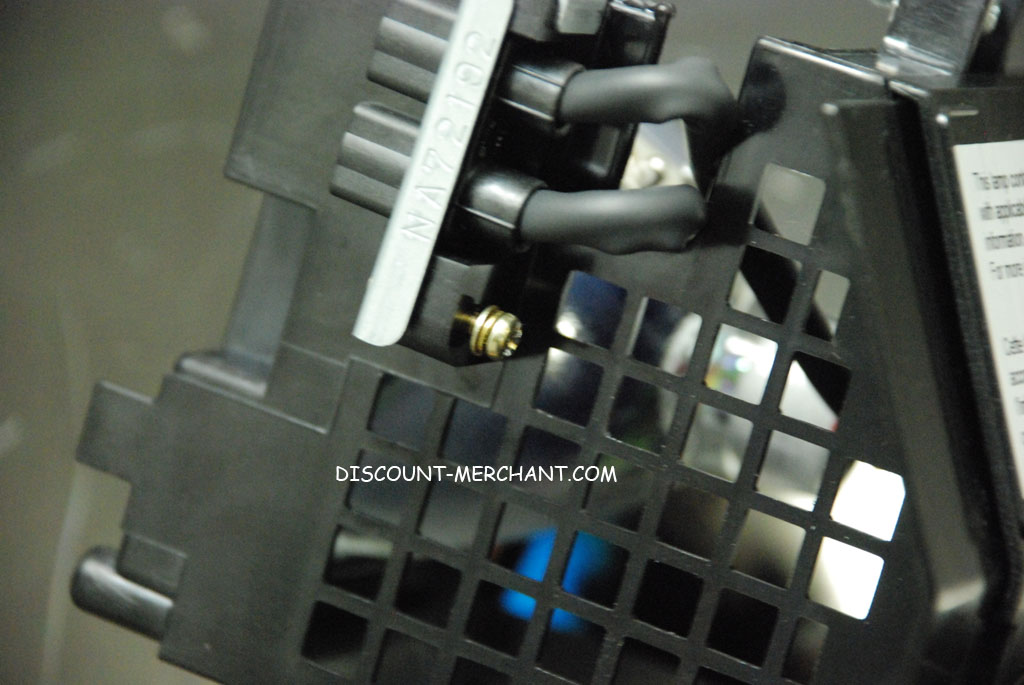

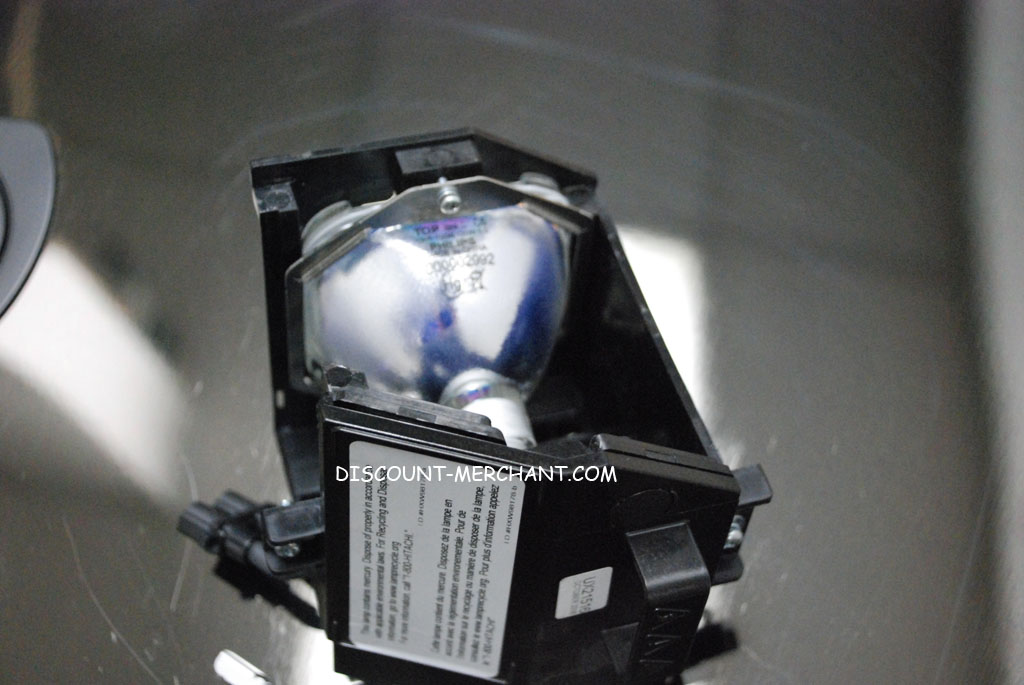

With the metal cage off, we can see our lamp and the screws holding it down…

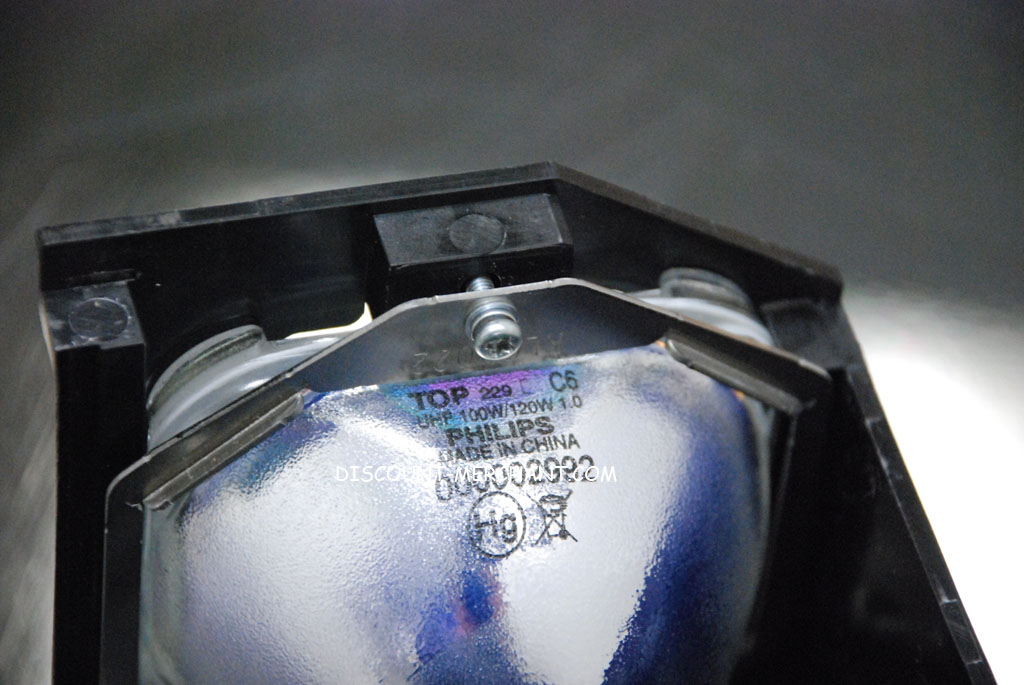

Notice that the original lamp is manufactured by Philips. Your original lamp is also a 100W/120W

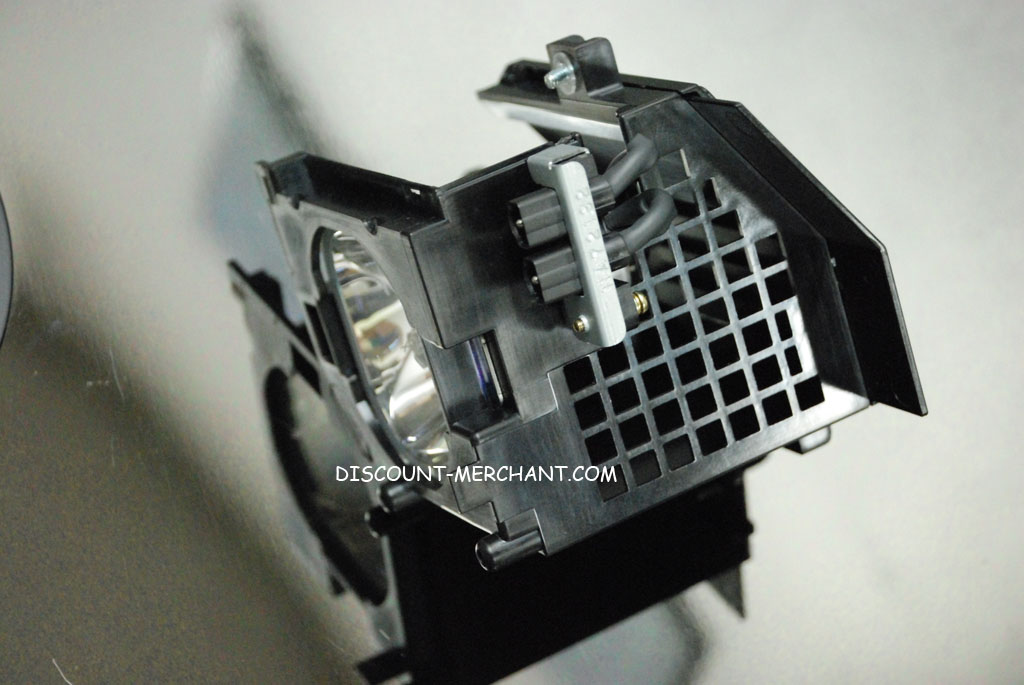

Notice there are two screws…one on either side holding the lamp in place…we need to unscrew these with our Phillips screwdriver, but first…

Let’s unscrew the screw holding the connect plug in place.

With that removed, we head back to unscrew the lamp…

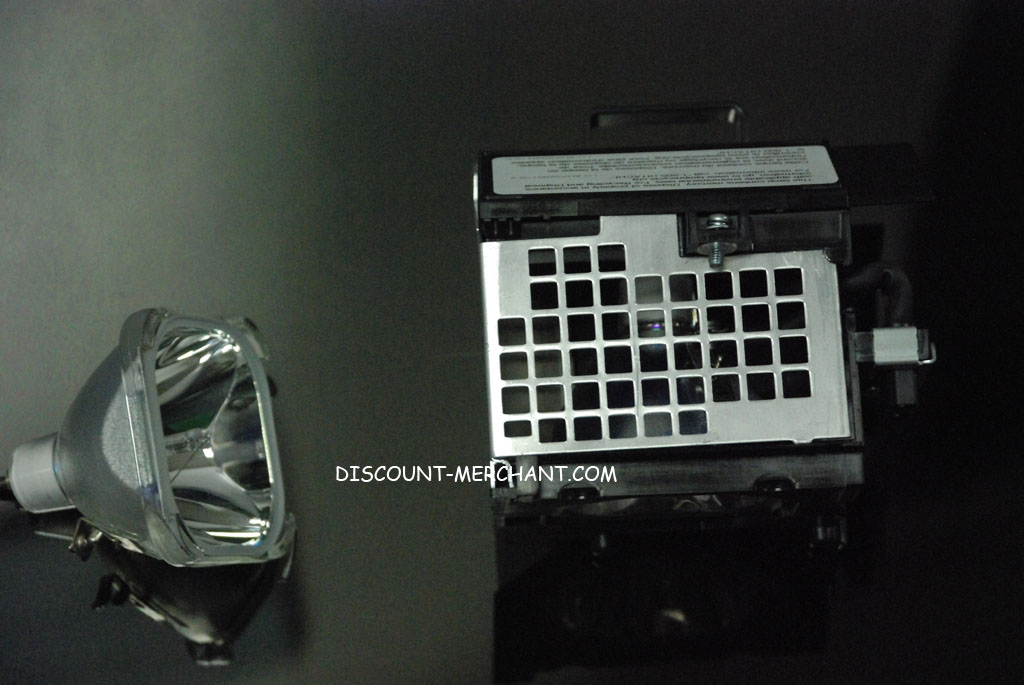

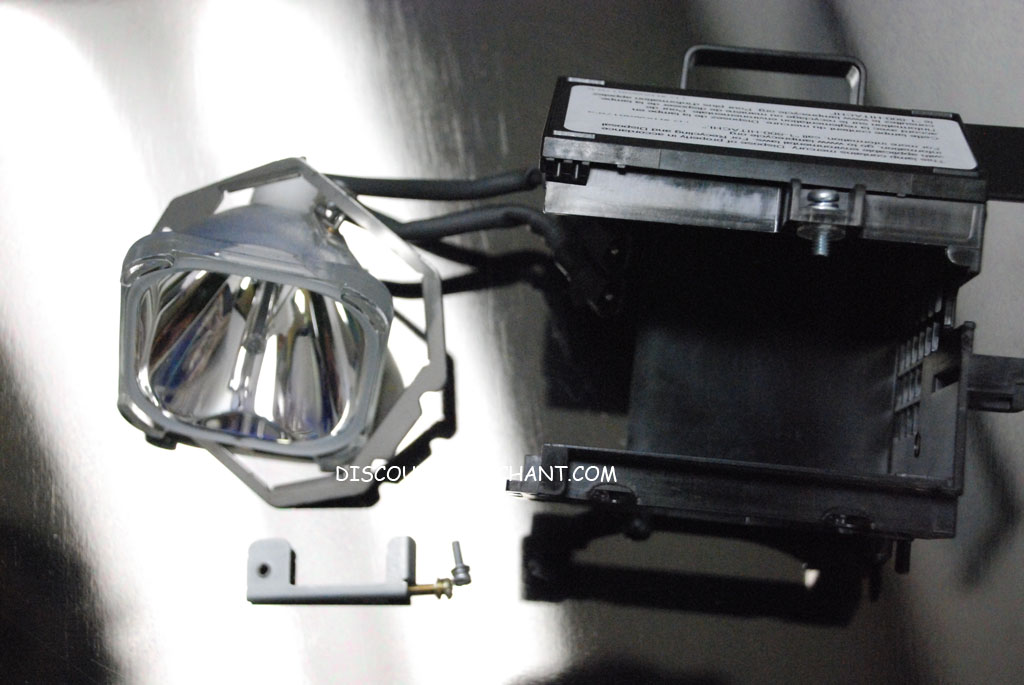

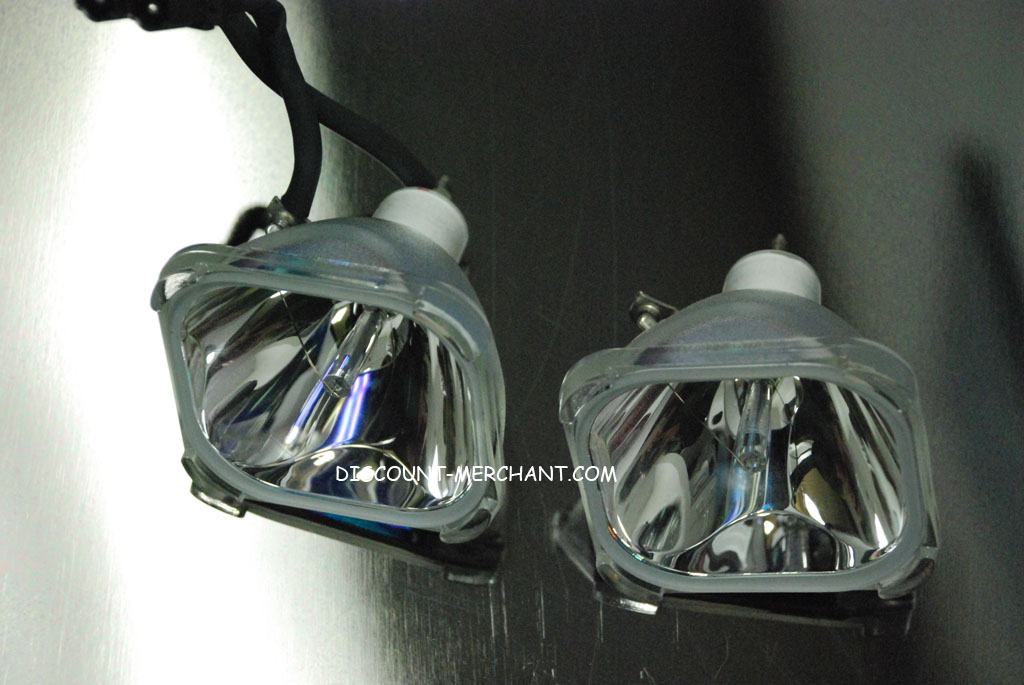

Now here is the lamp and enclosure apart…very simple, isn’t it?!?

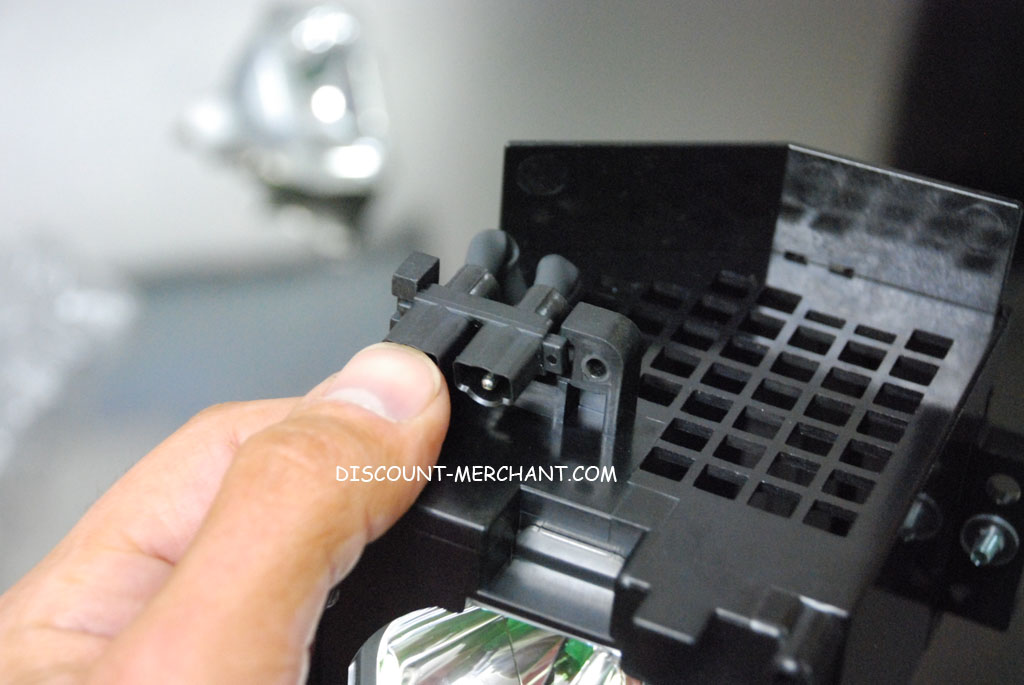

All that’s left is to swap out the power plug from the old lamp onto the new lamp:

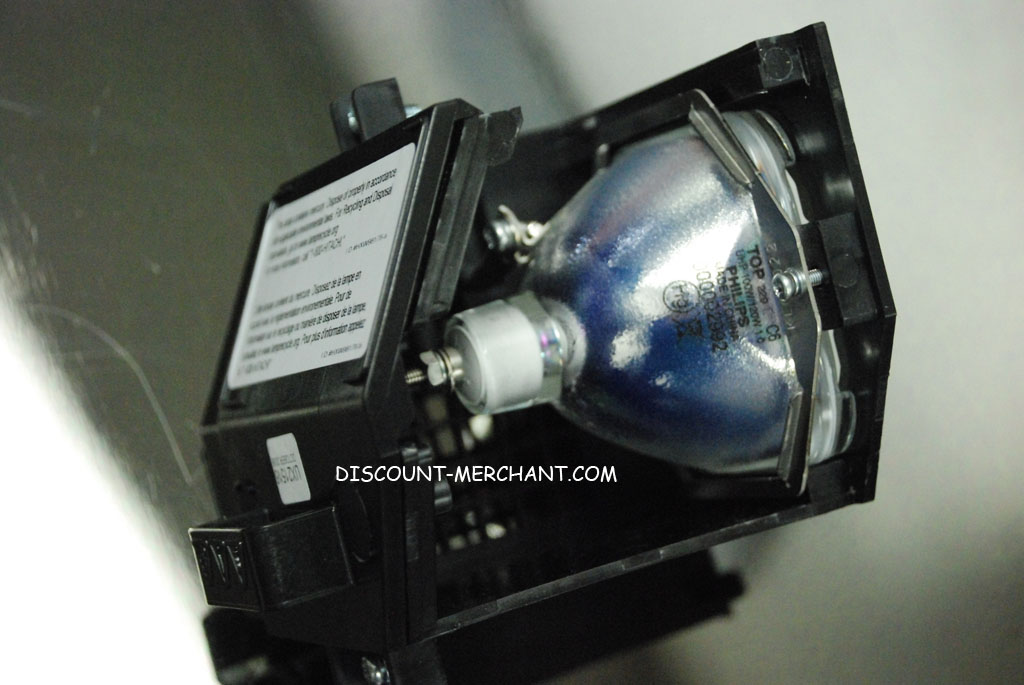

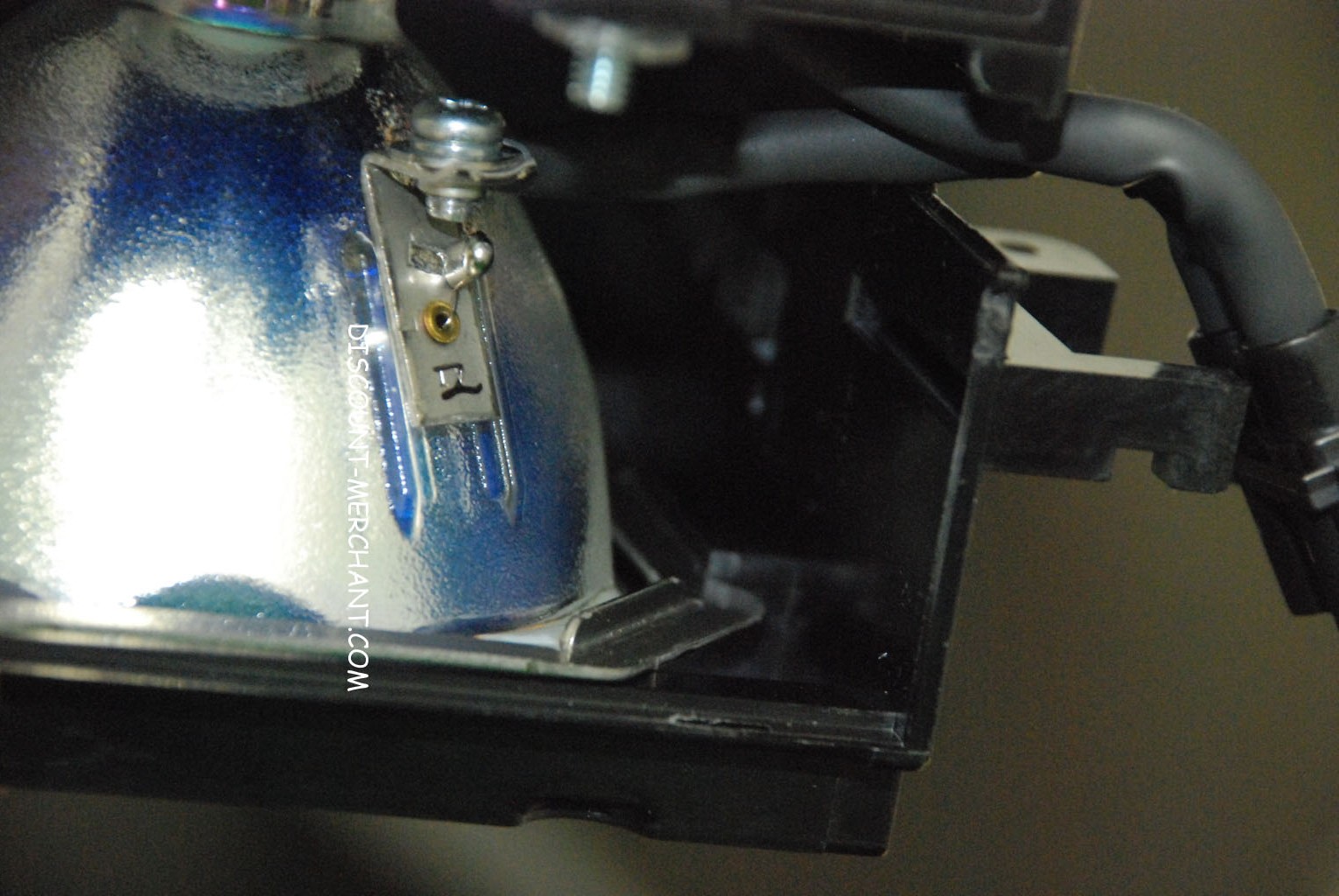

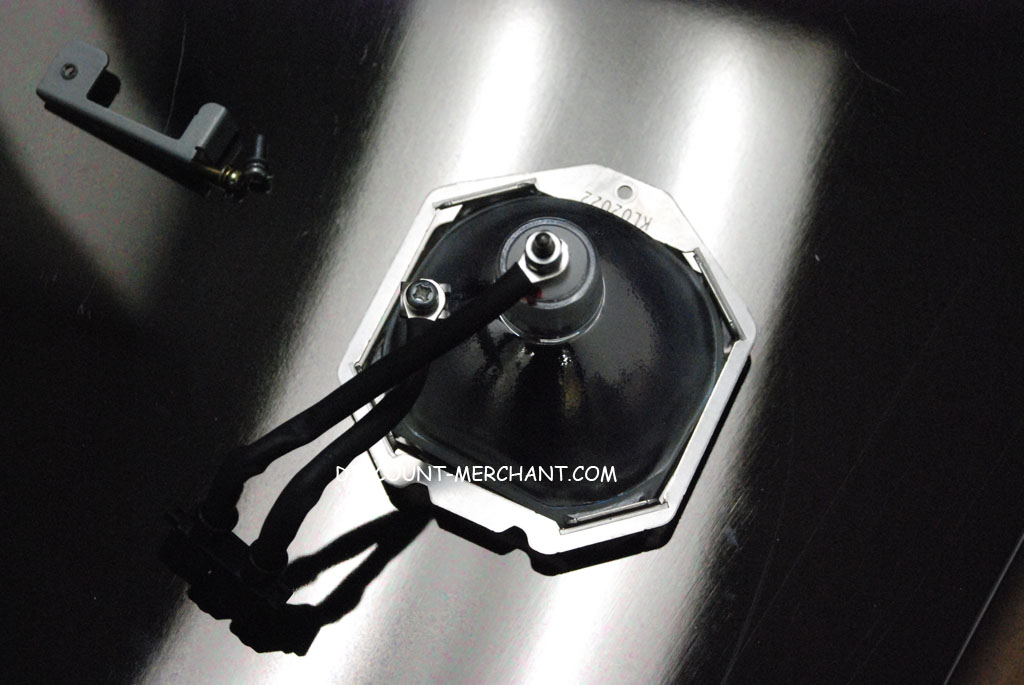

Our pliers come into use here to remove the nut from the center of the lamp.

NOTE: Be careful when screwing in the side connector on to your new lamp. It’s best to hand torque as this one as it is very sensitive and might break with a lot of torque.

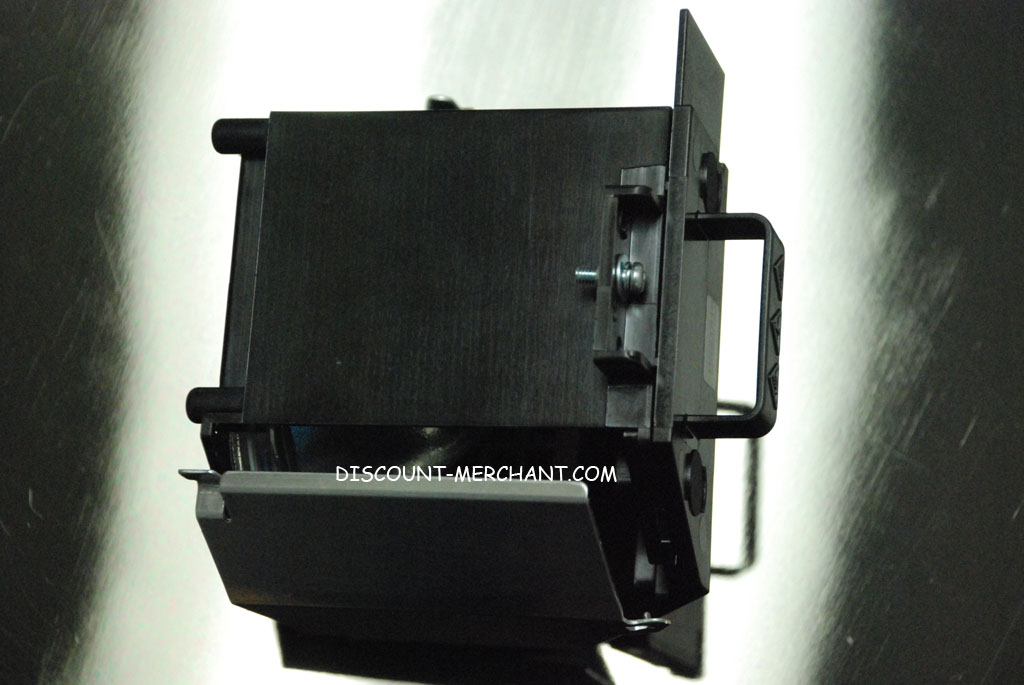

Now assemble in reverse order…do not forget the connector!

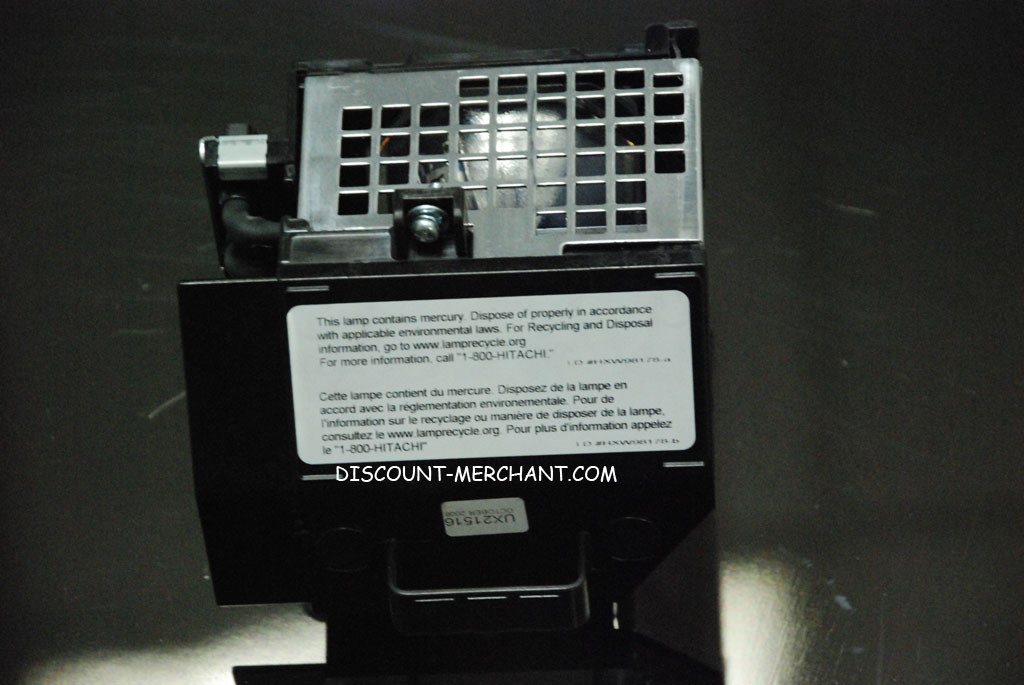

Your new lamp is inside the enclosure and your old lamp needs to be properly disposed of…often times it is impossible to tell a good lamp from a defective one, don’t get them mixed up! visit: http://lamprecycle.org or more information on recycling your bare lamp.

IMPORTANT: The bulb should be handled with a clean cloth at all times to avoid any dirt or oil. Our hands are naturally oily…this is a no-no for these lamps. It doesn’t hurt to do a final wipe with a clean, non-abrasive, lint-free cloth before reinstalling your lamp…

Again, Discount-Merchant.com promises to be the low price leader in all Projection TV Lamps they carry…if this is not true, let us know and we’ll fix it!

Click below to buy this lamp now:

Lowest Prices Anywhere!
