by avatarShelagh McNallyPosted on Posted in FixYourDLP, Projector Lamp Replacement Guides — No Comments ↓

This guide shows you how to replace the Epson EX3210 projector Epson EX3210 projector lamp

An authentic Epson EX3210 projector lamp will make all the difference in performance.

Why invest in authentic projector lamps

Look for the seal of approval before buying your Epson EX3210 projector lamp. Keep reading for the 6 reasons to avoid counterfeit lamps.

Find this lamp on Amazon sold by these authorized dealers:

6 reasons to avoid generic lamps:

Watching for end of life

It’s time to replace the Epson EX3210 projector lamp projector lamp when the following signs are seen:

  • The projected image gets darker or starts to deteriorate.
  • A message appears saying to replace the lamp when the projector is turned off
  • The projector lamp warning light flashes orange.

Installing the Projector Lamp Replacement

The Epson EX3210 projector lamp uses the Epson ELPLP67 projector lamp replacement.

Before installation:

  • Turn power button off wait for light to stop flashing.
  • Turn off power switch on Epson EX3210 projector lamp projector.
  • Unplug the power cord.
  • Allow the Epson EX3210 projector lamp projector to cool for one hour. It should be cool to the touch before changing the projector lamp.
  • Do not operate the projectors while any of the lamps are removed as this may result in malfunctions, fire hazard and other accidents.

Caution: Don’t touch the actual bulb with your fingers since the oil from your skin can cause a black spot on the bulb.

Installing the Epson ELPLP67 projector lamp

Epson_EX3210_projector_Epson_ELPLP67_replacement_lampLoosen the lamp cover screw and slide the Epson EX3210 projector lamp cover off.

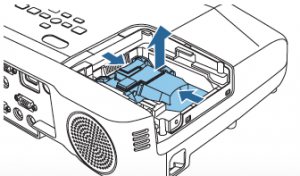

Epson_EX3210_projector_Epson_ELPLP67_remove_projector_lampLoosen the two screws holding the Epson ELPLP67 projector lamp in place.

NOTE: The Epson ELPLP67 projector lamp contains mercury and should not be thrown into regular garbage. Recycle your used lamps!

Epson_EX3210_projector_Epson_ELPLP67_replacement_projectors_lamp_step2Grab the Epson ELPLP67 projector lamp by the wire handle and gently pull the sprojector lamp out. Pulling too quickly can cause the bulb to shatter. Learn what to do should this happen. Gently insert the Epson ELPLP67 projector lamp making sure it’s facing the right way.

Epson_EX3210_projector_Epson_ELPLP67_insert_new_replacement_lampTighten the screws on the new Epson ELPLP67 projector lamp. Be sure not to tighten too much or the lamp may not work.

Replace the lamp cover and tighten the screw on the Epson EX3210 projector lamp projector lamp cover. You a ready to reset the projector lamp timer.



Reset the projector lamp timer

Reset the Epson EX3210 projector lamp projector Lamp Replacement Counter only when the Epson ELPLP67 projector lamp has been replaced.

Epson_EX3210_projector_Epson_ELPLP67_rest_lamp_timer

  • Press the MENU button on the remote control. The Lamp Reset Menu will appear.
  • Scroll down to the RESET LAMP HOURS. Press ENTER.
  • A prompt appears asking if you want to RESET LAMP HOURS?
  • Select YES and press ENTER.
  • Press MENU to exit.

Prolong the life of the  projector lamp:

Extend the life of the newly installed Epson ELPLP67 projector lamp with the following tips:

  • Keep your air filters clean to avoid overheating the projector.
  • Turn off the Epson EX3210 projector lamp projector and let it stand for at least one hour ever 24 hours. An average use of four to five hours per day will ensure longer lamp life.
  • Make sure there is enough airflow around the projector particularly if it’s been permanently mounted.
  • Learn more with Top tips for extending DLP projector lamp life



Tagged with: , ,

by avatarShelagh McNallyPosted on Posted in FixYourDLP, Projector Lamp Replacement Guides — No Comments ↓

optoma GT750E projectorsInstall a replacement Optoma GT750E projector lamp

When the Optoma GT750E projector lamp approaches end of life, a replacement message will flash on screen. You may also notice the picture quality starting to have poor resolution with washed out colors. Change your projector lamp immediately. The projector will not work if the lamp has burnt out or broken.

Find this lamp from the following OEM manufacturers on Amazon:

Buying the right brand of projector lamp

Your Optoma GT750E projector uses the Optoma BL-FP230H Replacement Lamp. Be prepared and have your authentic replacement projector lamp ready and waiting. If you are buying over the Internet, avoid projector lamps with a low price tag for the following reasons:

Learn 7 ways to spot a counterfeit projector lamp.

Installing the replacement lamp

Before replacing the Optoma GT750E projector follow these important safety tips:

  • Switch off the power to the Optoma GT750E projector by pressing the Power/Standby button.
  • Disconnect the power cord.
  • Allow the projector to cool down for at least 30 minutes. If should be cool to the touch. These projectors run using high temperatures and you can burn yourself badly if you don’t allow the projector to cool down.

Optoma_GT750E_projector_Optoma BL-FP230H_lamp

1. Use a screwdriver to undo the two screws holding the lamp cover in place. The screws on the lamp cover and the lamp cannot be removed.

2. Remove the lid and place to one side. Don’t lose the lid as the projector will not turn back on until the lamp cover has been properly installed.

3. Remove the two screws holding the Optoma BL-FP230H in place.

Note: The used Optoma BL-FP230H lamp contains mercury and should be properly recycled. Don’t throw it into regular garbage. Please recycle this lamp.

4. Lift up the wire handle on the Optoma BL-FP230H lamp and slowly remove it from the projector.

Be careful not to bang the lamp against the projector as this may case the bulb to break. Learn how to clean up a broken lamp.

5. Remove the new Optoma BL-FP230H from its packaging. Taking care not to touch the actual bulb, lift up the handle on the new lamp and insert it gently into the GT750E projector.

6. Tighten the two screws on the lamp.

7. Replace the lamp cover and tighten its two screws. You are now ready to reset the Lamp Replacement Timer.

Reset the Lamp Replacement Timer

The Optoma GT750E projector has an automatic lamp timer that tracks the numbers of hours left in the lamp. If you don’t reset the lamp replacement timer you run the risk of the lamp being used beyond its recommended life and possibly exploding in the projector.

To reset the Lamp Replacement Timer:

  • Turn on the projector.
  • Press MENU.
  • Select SYSTEM.
  • Select Lamp Settings.
  • Select Lamp Reset.
  • Select Yes.
  • Press MENU to exit.

Tips for extending projector lamp life:

  • Keep your air filters clean to avoid overheating the projector.
  • Every 24 hours, turn off the projector and let it stand for 1 hour
  • Make sure there is enough airflow around the Optoma GT750E projector particularly if it’s been permanently mounted.
  • Learn more with Top tips for extending DLP projector lamp life
Tagged with: , ,

by avatarShelagh McNallyPosted on Posted in FixYourDLP, Projector Lamp Replacement Guides — No Comments ↓

BenQ_W1000_projectorHow to replace the BenQ W1000 projector lamp

Start off with authentic

Save yourself unnecessary headaches and purchase an authentic BenQ W1000 projector lamp. Why go authentic? Counterfeit “compatible” lamps may appear to be a bargain but in the long run end up costing more due to their shorter lamp life. They are prone to explosions and can put your eyesight at risk. Due to their substitute toxic materials and carcinogenic parts, the few dollars you will save are not worth it. Protect your health and keep your BenQ W1000 working at optimum levels. Go with an authentic projector lamp.

You can buy the replacement lamp on Amazon from these authorized dealers:



End of life warning signs

Your BenQ W1000 projector uses the BenQ 5J.J0W05.001 replacement projector lamp. When it’s time to replace the BenQ W1000 projector lamp you’ll see a series warnings appear on screen.

BenQ_W1000_projector_5J.J0W05.001_projector_warnings



First warning: Order Replacement Lamp The BenQ W1000 projector lamp has been in operation for 3500 hours. Install a new lamp for optimal performance.



Second Warning: Replace Lamp Soon. The BenQ W1000 projector lamp has been in operation for 3950 hours. A new lamp should be fitted to avoid the inconvenience of the projector shutting down when the lamp reaches end of life.



Third warning: Replace Lamp Now. The BenQ W1000 has been in operation for 4000 hours. Replace the lamp immediately.  The lamp brightness diminishes with use. If the lamp is not replaced beforehand, it must be replaced after 4000 hours usage.



Final warning: Lamp usage time exceeded. The lamp MUST be replaced before the projector will operate normally.



Follow these safety instructions before changing the lamp:

  • Reduce the risk of electrical shock by disconnecting the power cord on the BenQ W100 projector.
  • Reduce the risk of severe burns by allowing the projector to cool for at least 45 minutes. The projector should be cool to the touch.

Replacing the projector lamp

  • BenQ_W1000_projector_5J.J0W05.001_coverThe projector lamp cover is found on the side of the BenQ W100 projector.
  • Loosen the screw holding the projector lamp cover in place
  • Lift up the projector lamp cover.

BenQ_W1000_projector_5J.J0W05.001_remove_projector_lamp



  • Loosen the screws that secure the lamp.
  • Do not turn the power on with the lamp cover removed.
  • Do not insert your fingers between the lamp and the projector. The sharp edges inside the projector may cause injuries.
  • Lift the handle so that it stands up. Use the handle to slowly pull the lamp out of the projector.
  • NOTE: Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector.

    Do not insert your hands into the projector after the lamp is removed.

    • BenQ_W1000_projector_5J.J0W05.001_install_projector_replacement_lamp

    The BenQ 5J.J0W05.001 projector lamp contains mercury and should not be thrown into regular garbage. Recycle your used lamps!

  • Insert the new BenQ 5J.J0W05.001 lamp compartment and make sure it fits in the projector. Ensure the connectors are aligned. If there is resistance, lift the lamp and start again.



  • Tighten the screws that secure the lamp.Loose screw may cause a bad connection, which could result in malfunction.  Do not over tighten the screw.
  • Ensure the handle is fully laid flat and locked in place. Replace the lamp cover on the
  • projector.
  • Press the lamp cover down until the click is heard locking the projector.
  • You are ready to reset the lamp timer

Resetting the lamp timer

Do not reset the BenQ W100 projector lamp timer if the lamp has not been replaced as this could cause damage. Don’t start the if the lamp cover has not been replaced. To reset the projector lamp timer:

BenQ_W1000_projector_5J.J0W05.001_reset_lamp_timer

  • After the startup logo, open the On-Screen Display (OSD) menu. Go to the SYSTEM SETUP: Advanced Lamp Settings menu.
  • Press MODE/ENTER. The Lamp Settings page displays. Press to
  • highlight.
  • Reset lamp timer and press MODE/ENTER.
  • A warning message displays asking if you want to reset the lamp timer. Highlight Reset and press MODE/ENTER.
  • The lamp time will be reset to ‘0’
  • Lamp time will be reset to zero.

Extend the BenQ MS614 projector lamp



Save

Save

Save

Save

Tagged with: , , ,

by avatarShelagh McNallyPosted on Posted in FixYourDLP, Projector Lamp Replacement Guides, Rear Projection TV Lamp Replacement — No Comments ↓

Our guide walks you through replacing the Sony KDS-R60XBR2 TV lamp

When to replace?

When the Sony KDS-R60XBR2 TV lamp  is reaching end of life, you will see a message on screen and the lamp indicator on the TV will start flashing. Other end of life signs may also include darker images and colors that look off.

The Sony KDS-R60XBR2 TV uses the Original Lamp For SONY KS 70R200A:KDS R70XBR2:KDS R60XBR2:KDS 70R2000 Rear projection TV

Find this lamp on Amazon.

To replace the projector lamp

The Sony KDS-R60XBR2 TV uses the Sony XL-5300 Replacement TV Lamp. Perform there safety steps before installing the new projector lamp:

  • Turn off the power on the main unit.
  • The cooling fan will continue to operate for two minutes after the power is turned off.
  • Wait several minutes before unplugging the power cord.
  • Wait an additional 30 minutes to allow the lamp to cool down. The lamp operates under extreme so avoid touching it before changing the lamp.

Sony_KDSR70XBR2_remove_Xl-5300_lamp_cover

Remove the outside Sony XL-5300 projector lamp cover. Click the switch open to remove the lamp cover.

Sony_KDSR70XBR2_remove_Xl-5300_lamp





Remove the inner lamp door. Turn the screw counterclockwise, and then turn the knob to the left until
the marks on the lid and the case line up. Remove the door.
Sony_KDSR70XBR2_install_new_Xl-5300_lampPull out the Sony XL-5300 lamp. Hold the indents on the top and bottom of the lamp, and pull the Sony XL-5300 lamp straight out. Do not touch the inside of the lamp compartment. Never touch the glass portion of the lamp or the surrounding parts.

NOTE: This projector lamp contains mercury and should not be thrown into regular garbage. Recycle your used lamps!

Sony_KDSR70XBR2_install_replacement_Xl-5300_lampPut the new Sony XL-5300 lamp into its place and make sure it’s securely mounted into the compartment. Failure to do so may cause a fire or the screen to go dark.

Sony_KDSR70XBR2_disconnect_Xl-5300_lampNOTE: The lamp compartment is tilted, as shown in the following illustration. If the Sony XL-5300 lamp is not securely reattached, the self-diagnostic function may be triggered and the POWER LED blinks three times.



Sony_KDSR70XBR2_reconnect_replacement_Xl-5300_lampReattach the lamp door. To secure the door, turn the knob to the right while pushing the door in, until the marks on the lid and the and the case line up. Then, turn the screw clockwise to tighten the door.
Sony_KDSR70XBR2_reinstall_door_Xl-5300_lamp
Put the outside lamp cover back in its place.
Replace the cover, inserting it from the left side. Press the clamp on the
right side to secure the cover.
You are ready to reset the Lamp Replacement option in order to track the hours of projector lamp.

Reset the Lamp Replacement option

Until you set the Lamp Replacement option, a message announcing that the is at the end of its life will appear every time you turn on the TV. You will need to reset. After the Sony XL-5300 lamp is replaced, you must select this Setup option or this message will continue to appear when you first turn on the TV.
Sony_KDSR70XBR2_reset_timer
Select this option after you replace the lamp.
Depending on environmental conditions, such as frequency of use, some
lamps may burn out before the lamp replacement message appears on the TV.
  • Press the MENU button on the remote control. Scroll down to the SETUP option.
  • Scroll down to the LAMP REPLACEMENT. Press ENTER.
  • A prompt appears asking if you want to reset the lamp hours.
  • After the lamp is replaced, you must select this option or this message will
    continue to appear when you first turn on the TV.

Authentic lamps are critical!

Don’t settle for anything but the best for your Sony KDS-R60XBR2 TV. When buying look for the seal of approval.

6 reasons to avoid generic LCD projector lamps:



Green your Sony XL-5300 TV

Sony XL-5300 TV_replacement_lamp

If you interested in going green with your KDS-R60XBR2, you can replace only the projector bulb and re-used the plastic casing. This can save your money plus help reduce waste. Watch our training video to learn more.

Find this lamp on Amazon:

Tagged with: , ,

by avatarShelagh McNallyPosted on Posted in FixYourDLP, Projector Lamp Replacement Guides, Rear Projection TV Lamp Replacement — No Comments ↓

Mitsusbishi DMD 4719-001997 DLP Chip, Mitsubishi WD-65736

Replace the 4719-001997 DLP chip to fix white dots on your Mitsubishi WD-73642 screen

The white spots on your Mitsubishi WD-73642 are caused by the 4719-001997 DLP chip being worn out. Known as Mitsubishi white death syndrome, this problem can be solved by installing a new Mitsubishi/Toshiba 4719-001997 DLP Chip 1910-6143W.

Note: These instructions can also be used for the following Mitsubishi models:
WD-57733, WD-57734, WD-57833, WD-60638, WD-60733,WD-60735, WD-60737,WD-60738, WD-60833, WD-60837, WD-60C8,WD-60C9, WD-65638,WD-65731, WD-65733,WD-65734, WD-65735, WD-65736, WD-65737, WD-65738,WD-65833,WD-65835,WD-65837, WD-65838,WD-65C8,WD-65C9, WD-73638, WD-73640, WD-73642, WD-73733, WD-73734, WD-73735, WD-73736,WD-73737, WD-73738, WD-73833, WD-73835,WD-73837,WD-73838, WD-73840, WD-73C11, WD-73C8, WD-73C9, WD-75837, WD-82737, WD-82738, WD-82838, WD-Y657 WD-C657,WD-Y577.

Find this new Mitsubishi/Toshiba 4719-001997 DLP Chip 1910-6143W on Amazon and then follow our step-by-step visual guide.

Equipment needed

  • Electric Philips screwdriver
  • needle nose pliers or a 5mm nut driver
  • antistatic gloves OR plastic gloves used with an antistatic wrist band
  • soft cloth or brush

How to replace the 4719-001997 DLP Chip

replace 4719-001997 DLP Chip MitsubishiWD-73642 RPTV

Step 1

Step 1: Put on the plastic gloves. Loosen all the screws found on the back panel.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 2

Step 2: Put the screws to the side. Gently remove the back panel.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 3

Step 3: Remove the 3 screws holding the lamp engine in place.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 4

Step 4: Disconnect all the connectors. Important: don’t yank any cables.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 5

Step 5: Carefully slide the light engine from the cabinet.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 6

Step 6: Remove the 3 screws holding the color wheel protective cover in it place. Avoid touching any of the optical components as this can affect the quality of your picture.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 7

Step 7: Carefully disconnect the cable between the terminal board and lamp.



replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 8

Step 8: Disconnect the cables connecting the color wheel.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 9

Step 9: Loosen the 3 screws holding the cooling unit/fan to the terminal board.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 10

Step 10: Remove the cooling unit.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 11

Step 11: Loosen the 2 screws holding the terminal cover in place. (Good time to dust this section).

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 12

Step 12: Loosen the 10 screws holding the terminal in place.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 13

Step 13: Carefully pop the terminal out of its holder.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 14

Step 14: Unlock the old DLP Chip from the terminal. You may need to loosen the screw on the side or use a flat edged screwdriver to pop it out.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 15

Step 15: Place the new DLP chip into place. Handle the DMD DLP CHIP only by the edges because it is very sensitive to antistatic electricity.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 16

Step 16: Put the terminal back into its holder.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 17

Step 17: Tighten the 10 screws holding the terminal in place.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 18

Step 18: Tighten the 2 screws on terminal board’s cover.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 19



Step 19: Put the fan unit back on.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 20

Step 20: Tighten the 3 screws holding the cooling unit/fan to the terminal board.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 21

Step 21: Reconnect the cables connecting the color wheel.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 22

Step 22: Reconnect the cable between the terminal board and lamp.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 23

Step 23: Replace the color wheel protective cover and tighten the 3 screws.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 24

Step 24: Re-connect all the cables running from the terminal board and light engine.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 25

Step 25: Carefully place the light engine back inside the unit. Tighten the 3 holding the terminal board and light engine in place.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 26

Step 26: Put the back panel back onto the TV.

replace 4719-001997 DLP Chip in the Mitsubishi WD-73642 RPTV

Step 27



Step 27: Tighten all the screws on the back panel. Enjoy your crisp, clear picture on your Mitsubishi WD-73642 RPTV.

Need to replace the Mitsubishi WD-73642 RPTV lamp? Check out our tutorial.

Learn more about your Mitsubishi WD-73642 RPTV:

Tagged with: , ,

by avatarShelagh McNallyPosted on Posted in FixYourDLP, Projector Lamp Replacement Guides — No Comments ↓

Epson_480_projectorReplace the Epson PowerLite 480 projector lamp using our guide.

Be sure to invest in an authentic Epson PowerLite 480 projector lamp. Protect your safety and your projector.

Replacement Warning Signs

You can expect up to 3000 regular hours when your Epson PowerLite 480 projector is set to normal consumption and up to 4000 hours if the ECO power consumption is turned on. When it’s time Epson PowerLite 480 projector lamp to replace the lamp, you will see these warning signs:

  • The projector lamp indicator flashes orange.
  • A message telling you to replace the lamp appears on screen as soon as the projector is turned on.
  • The images gets darker or starts to deteriorates.

Find this lamp on Amazon from these authorized dealers:

Go with authentic

The Epson PowerLite 470 needs the Epson ELPLP71 projector lamp. Invest in an authentic OEM projector because it’s been manufactured to meet the specifications of the Epson PowerLite 480 projector. Avoid counterfeits since they damage the sensitive and expensive mechanisms and actually have a much shorter lamp life since they are prone to explosions.

Installing the projector lamp

Pre-installation Preparation:

      • Turn off the projector power and wait for the cool-down period which is about two minutes. Disconnect the power cord after the two minutes is over.
      • Wait at least 30 minutes to one hour for the Epson PowerLite 480 projector to cool internally before opening it up. It should be cool to the touch. This projector operates using intense heat so don’t attempt to change the lamp while the projector is hot as you run the risk of a severe burn.

Epson_PowerLite 480_projector_lamp_ELPLP71_lamp_coverLoosen the screw holding the Epson PowerLite 480 projector lamp cover in place.

SlideEpson_PowerLite 480_projector_lamp_ELPLP71_cover_ff the Epson PowerLite 480 lamp cover off and place it to one side.

Epson_PowerLite 480_remove_projector_lamp_ELPLP71

Loosen the two screws holding the Epson 480 projector lamp in place.



Epson_PowerLite 480_remove-2-projector_lamp_ELPLP71





  • Lift up the wire handle on the Epson ELPLP71 projector lamp and gently pull the projector lamp out of the Epson PowerLite 480 projector lamp. Don’t knock the actual bulb as it may break.NOTE: The Epson ELPLP71 projector lamp contains mercury and should not be thrown into regular garbage. Recycle your used lamps!Epson_PowerLite 480_insert_replacement_projector_lamp_ELPLP71Slowly insert the Epson ELPLP71 projector lamp until it clicks into place. Be sure not to touch the actual bulb as the oil from your skin will case black spots to be burned onto the lamp causing blackouts on the screen.Epson_PowerLite 480_screws_new_projector_lamp_ELPLP71Tighten the screws on the newly installed Epson ELPLP71 projector lamp.

    Replace the lid on the Epson PowerLite 480 projector.

    Tighten the screw on the projector lamp cover. Reset the lamp timer.

    Resetting the lamp timer

    The projector lamp timer will need to be reset after replacing the Epson ELPLP71 projector lamp. This timer helps the Epson PowerLite 480 projector to properly track the lamp life. Only reset the timer when a new Epson ELPLP71 projector lamp has been installed, otherwise the projector will NOT know when it’s time to replace the lamp. You run the risk of damaging your projector.

    Epson_PowerLite 480_reset_projector_lamp_timer_ELPLP71

    • Press the MENU button on the remote control. The Lamp Reset Menu will appear.
    • Scroll down to the RESET. Press ENTER.
    • A prompt appears asking if you want to reset the lamp hours.
    • Select YES. Press ENTER.
    • Press the MENU button or ESC to exit the menus.

    The lamp hours will be reset to zero. The lamp usage timer shows 0H until you’ve used the lamp for at least 10 hours.

    Extend projector lamp life

    Extend the life of the newly installed Epson ELPLP71 with the following tips:

    • Keep your air filters clean to avoid overheating the projector.
    • Turn off the Epson PowerLite 480 projector and let it stand for at least one hour ever 24 hours. An average use of four to five hours per day will ensure longer lamp life.
    • Make sure there is enough airflow around the projector particularly if it’s been permanently mounted.
    • Learn more with Top tips for extending DLP projector lamp life.

    Save

    Save

    Save



Tagged with: , ,

by avatarShelagh McNallyPosted on Posted in FixYourDLP, Projector Lamp Replacement Guides — No Comments ↓

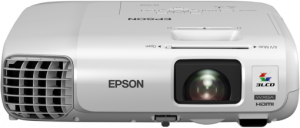

When it’s time to replace the Epson EB-955W projector lamp follow this guide

When it’s time to replace the Epson EB955W projector lamp you’ll notice the power indicator is flashing blue, and the lamp indicator is flashing orange. You may also notice the picture has gone dimmer or the color is off. An on screen message will also appear; “Time to replace the lamp. ” You can expect 4900 hours of use when the projector is set to Normal and about 5900 hours when the ECO mode has been started.

Why invest in authentic?

The best thing you can do to keep your prjector working properly is to buy an authentic Epson EB-955W projector lamp. Most counterfeit lamps cost more in the long run because they have a shorter life than original lamps. While counterfeits claim to be compatible they are often created with toxic materials including including Krypton-85. Lamps that are not OEM are prone to explosions and usually can damage the projector’s sensitive optics. Your eyesight is also at risk. Buy an OEM authentic Epson EB945 projector lamp and keep your projector working properly.

Find this authentic lamp on Amazon:

Installing the lamp

The Epson EB-955W projector uses model Epson ELPLP78. Before installation:

  • Turn off the Epson EB-955W projector and unplug the AC cord.
  • Allow the projector to cool for one hour – it should be cool to the touch. Inside of the projector can be very hot since these machines operator under high temperatures and you run the risk of being burned if the projector has not cooled down.
  • Do not operate the projectors while any of the lamps are removed as this may result in malfunctions, fire hazard and other accidents.

Caution: Don’t touch the screen or the actual bulb with your finger since the oil from your skin can cause a black spot on the bulb.

Epson_EB-955W_projector_lamp-Epson ELPLP78_remove_cover

The Epson EB-955W lamp cover is on the side. Using a screwdriver to gently release the cover switch. Slide the lamp cover off.

Remove the two screws on either side of  Epson ELPLP78 lamp. Place the screws to either side. Grip the raised section of the old lamp and remove it.

Epson_EB-955W_projector_lamp-Epson ELPLP78_remove_screws



Epson_EB-955W_projector_lam









Take the new Epson ELPLP78 projector lamp by the handle and gently put it into place making sure the lamp is facing in the right direction.

Epson_EB-955W_projector_lamp-Epson ELPLP78_install new

Replace the projector lamps screws and re-connect the lamp cover. Re-attach the power cord. Turn the projector on and let it warm up. You are ready to reset the lamp timer.

NOTE: The Epson ELPLP78 lamp contains mercury and should not be thrown into regular garbage. Recycle your used lamp.

Reset Lamp Timer

Reset the Epson Epson EB-955W Lamp Replacement Counter only when the Epson ELPLP78 lamp has been replaced.

Epson_EB945_projector_lamp-Epson ELPLP78_reset_timer

  • Press MENU to display the RESET menu.
  • Press the down arrow to move down the menu to the RESET ALL option.
  • A prompt message appear. Select YES and press ENTER.
  • The lamp hours will be reset to zero.
  • Press MENU or ESC to exit the menu
  • The lamp timer will be a zero.

Extend the life of the newly installed Epson ELPLP78 with the following tips:

  • Keep your air filters clean to avoid overheating the projector.
  • Turn off the Epson PowerLite 93 and let it stand for at least one hour ever 24 hours. An average use of four to five hours per day will ensure longer lamp life.
  • Make sure there is enough airflow around the projector particularly if it’s been permanently mounted.
  • Learn more with Top tips for extending DLP projector lamp life



Tagged with: , ,

by avatarShelagh McNallyPosted on Posted in FixYourDLP, Projector Lamp Replacement Guides — No Comments ↓

Epson Powerlite 1955 projector

This guide shows how to replace Epson Powerlite 1955 projector lamp

Follow this quick-step guide to an easy installation of the Epson Powerlite 1955 projector lamp.

Find this replacement lamp on Amazon  from the following authorized dealers:

Why avoid counterfeits

Here are the 5 main reasons to avoid counterfeit lamps and go with authentic OEM lamps:

Protect yourself from and buy authentic projector lamps. Learn 7 Ways to spot counterfeits.

When is it time to replace

Watch for the warning signs that indicate the Epson Powerlite 1955 projector needs a new projector lamp:

  • Image begins to dim or actually deteriorate. Colours appear distorted.
  • “Replace the Lamp” warning message appears on screen
  • Lamp light flashing orange

Installing the new Epson 1940W projector lamp

Your Epson PowerLite 1955 projector uses the Epson ELPLP75 projector lamp. Before installing the new projector lamp follow these important preparation steps:

  • Turn off the projector and wait until the power lights stops flashing.
  • Unplug the power cord so the projector can’t be accidentally turned of while the lamp is being replaced.
  • Wait for at least one hour for the Epson PowerLite 1955 to cool down. It should be cool to the touch. These projectors operate under high heat and you can get burned very badly if the projector is still hot.

Epson_Powerlite_1955_Epson_ELPLP75_remove_projector_lamp_cover

Using the the screwdriver that came with the Epson PowerLite 1955 loosen the screw holding on the projector lamp cover. Remove the lamp cover

Epson_Powerlite_1955_Epson_ELPLP75_remove_projector_lamp



Use the same screwdriver to loosen the screws holding the Epson ELPLP75 projector lamp in place.



Epson_Powerlite_1955_Epson_ELPLP75_install_replacement_projector_lamp

Grab wire handle lamp and gently pull up the Epson ELPLP75 projector lamp. Using too much force can break the bulb. Learn how to clean up after a bulb breaks.

Put the old projector lamp aside for proper recycling. These lamps can’t be thrown into the regular garbage as they contain mercury.

Hold the lamp so it faces the correct way and insert the Epson ELPLP75 projector lamp until it clicks into place. If it doesn’t easily fit into the projector make sure it’s facing the right way. Never force the lamp into the projector.

Tighten the two screws on the new Epson ELPLP75 projector lamp. Replace the projector lamp cover and tighten the screw on the cover. You must reset the lamp timer.

Resetting the Epson PowerLite 11955 lamp timer

After replacing the Epson ELPLP75 projector lamp you’ll need to reset the lamp timer in order for the Epson PowerLite 1955 to properly track the lamp life. Only reset the lamp timer when a new projector lamp has been installed

To reset the lamp timer:

Epson_Powerlite_1955_Epson_ELPLP75_reset_projector_lamp_timer

  • Press the MENU button on either projector’s control panel or on the remote control to display the MAIN MENU.
  • Scroll down to the RESET menu. Press ENTER.
  • Scroll down to the RESET LAMP HOURS option.
  • A reset dialogue box will appear asking you if you want to reset the hours. Select Yes. Press ENTER.
  • The lamp hours will be reset to zero.
  • Press EXIT to leave the menu settings

Tips for longer projector lamp life:

Extend the life of the newly installed Epson ELPLP75 projector lamp with the following tips:

  • Keep your air filters clean to avoid overheating the projector.
  • Turn off the Epson PowerLite 1955 projector and let it stand for at least one hour ever 24 hours. An average use of four to five hours per day will ensure longer lamp life.
  • Make sure there is enough airflow around the projector particularly if it’s been permanently mounted.
  • Learn more with Top tips for extending DLP projector lamp life.
Tagged with: , ,

by avatarShelagh McNallyPosted on Posted in FixYourDLP, Projector Lamp Replacement Guides, Rear Projection TV Lamp Replacement — No Comments ↓

Mitsusbishi DMD 4719-001997 DLP Chip, Mitsubishi WD-65736

Banish white dots on your Mitsubishi WD-65736 screen by replacing the 4719-001997 DLP Chip.

The white spots on your Mitsubishi WD-65736 are caused by the DLP chip being worn out. Known as Mitsubishi white death syndrome, this problem can be solved by installing a new Mitsubishi/Toshiba 4719-001997 DLP Chip 1910-6143W.

Note: These instructions can also be used for the following Mitsubishi models:

WD-57733, WD-57734, WD-57833, WD-60638, WD-60733,WD-60735, WD-60737,WD-60738, WD-60833, WD-60837, WD-60C8,WD-60C9, WD-65638,WD-65731, WD-65733,WD-65734, WD-65735, WD-65736, WD-65737, WD-65738,WD-65833,WD-65835,WD-65837, WD-65838,WD-65C8,WD-65C9, WD-73638, WD-73640, WD-73642, WD-73733, WD-73734, WD-73735, WD-73736,WD-73737, WD-73738, WD-73833, WD-73835,WD-73837,WD-73838, WD-73840, WD-73C11, WD-73C8, WD-73C9, WD-75837, WD-82737, WD-82738, WD-82838, WD-Y657 WD-C657,WD-Y577.

Find this new Mitsubishi/Toshiba 4719-001997 DLP Chip 1910-6143W on Amazon and then follow our step-by-step visual guide.

Equipment needed

  • Electric Philips screwdriver
  • needle nose pliers or a 5mm nut driver
  • antistatic gloves OR plastic gloves used with an antistatic wrist band
  • soft cloth or brush

How to replace the 4719-001997 DLP Chip

replace 4719-001997 DLP Chip Mitsubishi WD-65736 RPTV

Step 1

Step 1: Put on the plastic gloves. Loosen all the screws found on the back panel.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 2

Step 2: Put the screws to the side. Gently remove the back panel.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 3

Step 3: Remove the 3 screws holding the lamp engine in place.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 4

Step 4: Disconnect all the connectors. Important: don’t yank any cables.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 5

Step 5: Carefully slide the light engine from the cabinet.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 6

Step 6: Remove the 3 screws holding the color wheel protective cover in it place. Avoid touching any of the optical components as this can affect the quality of your picture.

replace 4719-001997 DLP Chip in the MitsubishiWD-65736 RPTV

Step 7

Step 7: Carefully disconnect the cable between the terminal board and lamp.



replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 8

Step 8: Disconnect the cables connecting the color wheel.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 9

Step 9: Loosen the 3 screws holding the cooling unit/fan to the terminal board.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 10

Step 10: Remove the cooling unit.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 11

Step 11: Loosen the 2 screws holding the terminal cover in place. (Good time to dust this section).

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 12

Step 12: Loosen the 10 screws holding the terminal in place.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 13

Step 13: Carefully pop the terminal out of its holder.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 14

Step 14: Unlock the old DLP Chip from the terminal. You may need to loosen the screw on the side or use a flat edged screwdriver to pop it out.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 15

Step 15: Place the new DLP chip into place. Handle the DMD DLP CHIP only by the edges because it is very sensitive to antistatic electricity.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 16

Step 16: Put the terminal back into its holder.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 17

Step 17: Tighten the 10 screws holding the terminal in place.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 18

Step 18: Tighten the 2 screws on terminal board’s cover.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 19



Step 19: Put the fan unit back on.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 20

Step 20: Tighten the 3 screws holding the cooling unit/fan to the terminal board.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 21

Step 21: Reconnect the cables connecting the color wheel.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 22

Step 22: Reconnect the cable between the terminal board and lamp.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 23

Step 23: Replace the color wheel protective cover and tighten the 3 screws.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 24

Step 24: Re-connect all the cables running from the terminal board and light engine.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 25

Step 25: Carefully place the light engine back inside the unit. Tighten the 3 holding the terminal board and light engine in place.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 26

Step 26: Put the back panel back onto the TV.

replace 4719-001997 DLP Chip in the Mitsubishi WD-65736 RPTV

Step 27



Step 27: Tighten all the screws on the back panel. Enjoy your crisp, clear picture on your Mitsubishi WD-65736 RPTV.

Learn more about your Mitsubishi WD-65736 RPTV:

Find this new Mitsubishi/Toshiba 4719-001997 DLP Chip 1910-6143W on Amazon.

Tagged with: , , ,

by avatarShelagh McNallyPosted on Posted in FixYourDLP, Rear Projection TV Lamp Replacement — No Comments ↓

4719-001997 DLP Chip, Samsung HLT5687SX RPTVSamsung HLT5687SAX/XAA white dots on screen means it’s time for a new DLP Chip

If white dots are ruining hour viewing pleasure on your Samsung HLT5687SAX/XAA the solution is to replace the 4719-001997 DLP CHip. We show you how to do this.

Note: These instructions can also be used for the following Samsung models:

50A650C1FXZA, HLT5055WX/XAA , HLT5076SX/XAA, HLT5087SX/XAA, HLS5087WX/XAA, HL56A650C1FXZA, HLT5656WX/XAA, HLT5676SX/XAA, HLT5687SX/XAA, HLT5687SAX/XAA, HLT5689SX/XAA, HLT6156WX/XAA, HL61A650C1FXZA, HL61A750A1FXZA, HLT6156WX/XAA, HLT6176SX/XAA, HLT6187SAX/XAA, HLT6187SX/XAA, HLS6187WX/XAA, HLT6189SX/XAA, HL67A750A1FXZA, HLT6756WX/XAA, HL72A650C1FXZA, HLT7288WX/XAA

Find this New Mitsubishi/Toshiba 4719-001997 DLP Chip 1910-6143W on Amazon.

Equipment needed

      • Electric Philips screwdriver
      • needle nose pliers or a 5mm nut driver
      • antistatic gloves OR plastic gloves used with an antistatic wrist band
      • soft cloth or brush

Replacing the 4719-001997 DLP Chip

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 1

Step 1: Put on the plastic gloves. Loosen all the screws found on the back panel. Put the screws to one side and remove the back panel.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 2

Step 2: Loosen the two screws holding the lamp bracket in place.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 3

Step 3: Remove the 4 screws holding the lamp engine in place. Disconnect all the connectors. Important: don’t yank any cables.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 4

Step 4: Carefully remove light engine from the cabinet.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 5

Step 5: Remove the 2 screws holding the color wheel protective cover in it place. Avoid touching any of the optical components as this can affect the quality of your picture.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 6

Step 6: Carefully disconnect the cables between the terminal board and lamp.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 7

Step 7: Disconnect the clip connecting the cooling unit.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 8

Step 8: Remove the cooling unit and terminal board.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 9

Step 9: Remove the terminal board.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 10

Step 10: Loosen the 7 screws holding the terminal cover in place. (Good time to dust this section).

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 11

Step 11: Carefully pop the terminal out of its holder.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 12

Step 12: Unlock the old DLP Chip from the terminal. You may need to use a flat edged screwdriver to pop it out.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 13

Step 13: Place the new DLP chip into place. Handle the DMD DLP CHIP only by the edges because it is very sensitive to static electricity.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 14

Step 14: Put the terminal back into its holder.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 15

Step 15: Tighten the 7 screws holding the terminal in place.



4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 16

Step 16: Replace the terminal board’s cover.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 17

Step 17: Reconnect the clip holding the cooling unit.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 18

Step 18: Re-connect the cables between the terminal board and lamp.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 19

Step 19: Tighten the 2 screws holding the color wheel protective cover in it place. Avoid touching any of the optical components as this can affect the quality of your picture.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 20

Step 20: Carefully replace the light engine back into the cabinet.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 21

Step 21: Replace and tighten the 4 screws holding the lamp engine in place. Re-connect all the connectors.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 22

Step 22: Put the light engine back into the RPTV. Tighten both screws that keep the back bracket in place.

4719-001997 DLP Chip, Samsung HLT5687SAX/XAA RPTV

Step 23

Step 23: Put the back panel onto the TV. Put the screws back into place and tighten them. Enjoy the crisp, clear picture on your Samsung HLT5687SAX/XAA RPTV.

Learn more about your Samsung HLT5687SAX/XAA RPTV:

Shop on Amazon for this chip.

Tagged with: , , ,
Join the discussion on Facebook! All your questions, answered! The Screen & Projector Group
